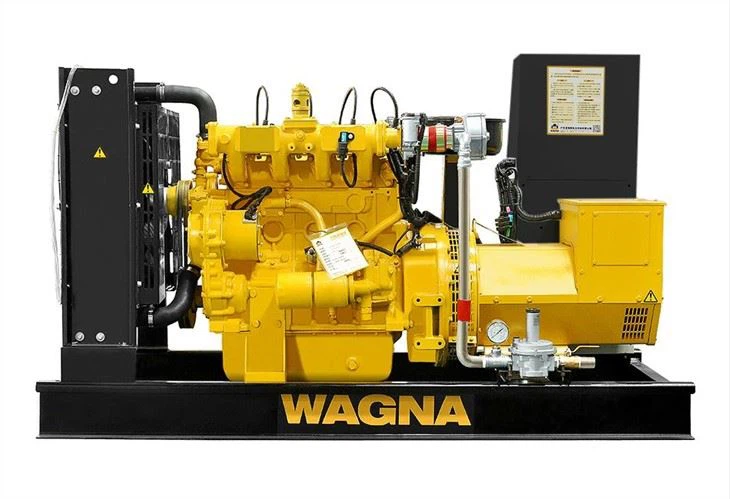

WAGNA 44KVA Biogas Generator
BRAND: WAGNA
Qauv: GC44W-50B
Lub cev muaj zog: 36KW / 45KVA
Zaus: 50HZ / 60HZ
Ceev: 1600/1800 RMP
FUEL HOM: BIOGAS
Hais txog Wagna
Wagna G-Series, roj generator teeb, yog nruab nrog Wagna roj cav, uas yog tsim thiab tsim los ntawm peb. Nws npog thaj tsam ntawm 20 - 1500 KVA , fueled los ntawm natural gas , biogas , dej phwj biogas , landfill gas thiab sib tov roj .
Smart & Reliable Energy Solutions nrog Combined Thaum tshav kub kub & Fais fab
Muaj ntau yam kev ua tau zoo, qis emission cogeneration systems
CHP Applications
Kev lag luam zaub mov - Tsiaj txhu - Kev lag luam kev ua liaj ua teb - Kev tsaws av - Kev kho dej khib nyiab - Breweries
Lub ntsiab nta
Kev pabcuam
Kho ntawm qhov chaw
Pib pib ntawm cov tshuab tshiab
24 teev kev pabcuam online; Kev saib xyuas chaw taws teeb
Kev tshuaj xyuas tsis tu ncua; Customized Maintance programs
Generator Teeb Specifications
Qauv | GC44W-50B |
Ntau zaus | 50HZ lossis 60HZ |
Ceev | 1500 lossis 1800 RMP |
Prime Power (POP) | 40KW / 50KVA lub cev muaj zog |
Lub zog txuas ntxiv (COP) | 36 KW / 45 KVA |
Rated Voltage | 400/230V los yog kho tau |
| Tus tswj | Dej Hiav Txwv / WAGNA |
| Warranty | Ib Xyoo lossis 1000 Teev |
| Keeb kwm | Tuam Tshoj |
| Dimension | 2000mm × 760mm × 1200mm |
| Qhov hnyav | 1155 KGS |
Cav Specifications
| Cav Qauv | WAGNA® W6BG8C-50G |
| Hom cav | Hauv kab 6, 4-cycle, Biogas |
| Npog x Stroke | 110 x 125 mm |
| Kev khiav tawm | 7.7L |
| Compression Ratio | 12:1 |
| Tus tswv xeev | Hluav taws xob |
| Kev xav | Ntuj Aspirated |
| Thermal Efficiency | 42.06% ib |
| Hluav taws xob Efficiency | 38.16% yog |
| Tag nrho Efficiency | 80.22 ib y |
Alternator
Chaw tsim tshuaj paus / qauv | WAGNA / WG22A40Y5 |
Tus naj npawb ntawm Theem | 3 |
Factor: Number | 4 |
Factor (Cos Phj) | 0.8 |
Cov kabmob | 1 |
Kev tiv thaiv | IP23 |
| Rwb thaiv tsev | H / H |
Daim ntawv ceeb toom:
Txhua lub cav tsis ua raws li ISO3046, ISO8528
Tag nrho cov cav tsis muaj raws li 25 degree cua inlet kub, barometric siab 100Kpa thiab txheeb ze av noo 30 feem pua.
Siab dua 40 degree thiab 1000m qhov siab, cov zis hluav taws xob yuav yog 1 feem pua tsawg dua rau 1 degree siab dua, thiab 4 feem pua tso rau 300m siab dua
Kev suav yog raws li biogas nrog tus nqi calorific 9.3kWh / Nm³
Hnub saum toj no tsuas yog hnub kuaj hauv peb lub chaw kuaj mob, nws tsis tuaj yeem siv los ua hnub ntawm tag nrho cov ntawv cog lus, peb muaj cai hloov cov kev ntsuas yam tsis tau ceeb toom
