Tswv yim Silent Easy Maintenance Engineering Siv 20KW 25KVA Cummins Diesel Generator

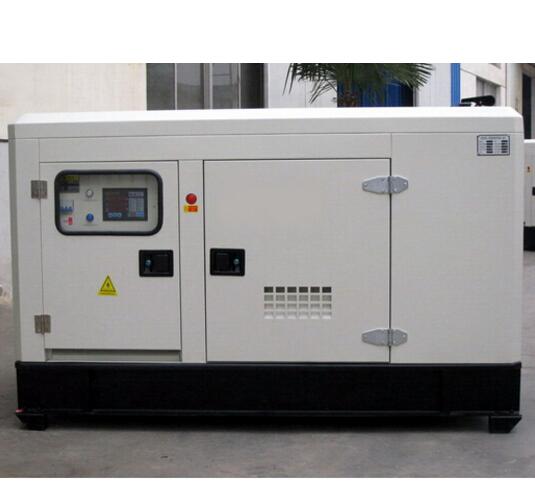

Tswv yim Cummins Diesel Generator muaj kev nyab xeeb thiab txhim khu kev qha, kev saib xyuas yooj yim, kev ua haujlwm qis. Yog tias nruab nrog lub thawv suab, tag nrho cov suab nrov ntawm chav tsev yuav raug txo. Nws yog ntsiag to heev.
Specification:
Tom ntej: 20KW 25KVA Cummins Diesel Generator
Qhov Chaw Keeb Kwm | Guangdong, Suav teb (Mainland) |
Hom Lub Npe | WAGNA |
Qauv nab npawb | DC22C -50 |
Hom tso zis | AC Peb theem |
Ceev | 1500RPM / 1800RPM |
Ntau zaus | 50HZ / 60HZ |
Rated Voltage | 380/220v 400/230v 415/240v 110V
|
Rated zog | 25kw / 20kw |
Regulator | AVR |
Cav | Cummins |
Tus tswj | Dej hiav txwv / Ntse Gen / Wagna |
Txoj kev txias | Dej txias |
Khoom Parameter:
Tom ntej: 20KW 25KVA Cummins Diesel Generator
Unit Model set | DC22C -50 | |
zog | Prime | Standby |
Chav ntsuas fais fab (KW) | 20 | 22 |
Lub cev muaj zog tus nqi (KVA) | 25 | 28 |
Cav Qauv | 4B3.9-G2 | |
Cav tsim | Cummins cav | |
Cav qauv | Inline 4 lub tog raj kheej, plaub stroke, ib txwm aspirated | |
Cav txias hom | 40 degree dej tank radiator, txias kiv cua nrog kiv cua siv tsav, thaiv kev nyab xeeb | |
Kev tswj hwm | Hluav taws xob tswj system | |
Pib hom | 24V DC hluav taws xob pib, thiab nruab nrog silicon rectifier them lub tshuab hluav taws xob | |
Roj System | Siab siab roj twj tso kua mis | |
Tag nrho lub cav hloov chaw (L) | 3.9 | |
Ntog * Stroke (mm) | 102*120 | |
Compression Ratio | 16.5:1 | |
Kev siv roj ntawm 100% load (g / kw·h) | 212 | |
Roj muaj peev xwm (L) | 11 | |
Coolant Peev Xwm (L) | 19 | |
Rated voltage / zaus / zog yam | 400V / 230V, 50Hz, 0.8 hysteresis, peb-theem plaub xaim | |
Steady-state zaus hloov pauv | Zoo dua 5 feem pua | |
Rwb thaiv tsev / Qib tiv thaiv | Chav Kawm H / IP22 | |
Xov tooj influence factor /harmonic coefficients | TIF<50><> | |
Lub suab nrov tshaj plaws (dB) A | Tsawg dua los yog sib npaug li 96 | |
Txheem accessories | Lub roj teeb pib thiab cov xaim sib txuas, cov kav dej xau, cov yeeb nkab corrugated, flange, damping muffler ntawm lub hauv paus, lub shock absorber | |
Qhov Loj (mm) | 1700*750*1200 | |
Qhov hnyav (kg) | 710 | |
Ps. Cov ntaub ntawv ntawm cov lus saum toj no hloov qee lub sijhawm, rau kev siv nkaus xwb.
Luv luvkev taw qhia:
Lub cav / Cummins USA nrog kev ua tau zoo thiab txhim khu kev qha, Coupled nrog brushless generator, siv ib qho tseem ceeb salient ncej rotor txheej txheem, Class H rwb thaiv tsev, xyuas kom meej nws cov kev ua tau zoo, khov kho thiab txhim khu kev qha. Peb cov maub los txais yuav ntau qhov kev tswj hwm module uas tshwj xeeb rau diesel gen-set.
Khoom qhia:
Tom ntej: 20KW 25KVA Cummins Diesel Generator
*** Daim duab rau kev taw qhia lub hom phiaj
Cov yam ntxwv ntawm genset powered los ntawm Cummins:
1. International Warranty Service
2. Lub sijhawm luv luv, raws li peb ib txwm muaj Cummins cav hauv Tshuag
3. Nrog ISO9001 & CE daim ntawv pov thawj
4. Cov khoom seem tau yooj yim tau los ntawm kev lag luam thoob ntiaj teb nrog tus nqi pheej yig dua
5. Ua ke nrog Stamford, Meccalte, Leroy Somer alternator lossis Tuam Tshoj alternator
6. Zoo meej tom qab kev pabcuam network
7. Ob leeg 50Hz thiab 60Hz
8. Kev ntsuas nruj nrog rau 50 feem pua ntau, 75 feem pua load, 100 feem pua cov load thiab 110 feem pua

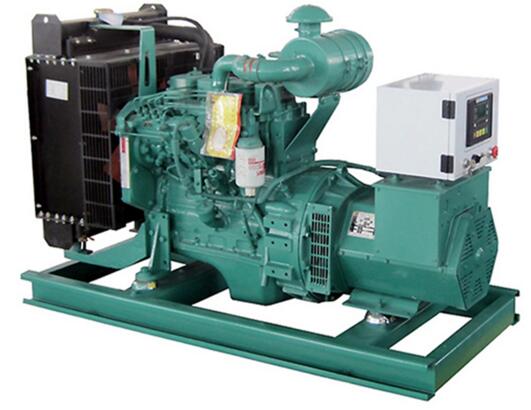

Standard configuration ntawm Cummins qhib hom:
1) Cummins cav
2) Stamford alternator (Leroy Somer, Wagna hom rau kev xaiv)
3) Dej Hiav Txwv HGM 6110 tswj vaj huam sib luag raws li tus qauv, AMF Tswj Vaj Huam Sib Luag Dej Hiav Txwv DSE7320 & Ntse Gen HGM6120 rau Kev Xaiv, ATS rau Kev Xaiv
4) Breaker raws li tus qauv, ABB, Delixi Breaker rau kev xaiv
5) 8 Lub Sij Hawm Ua Haujlwm Lub Ncauj Roj Tank (rau lub genset Tsawg dua lossis sib npaug rau 650kVA prime, tsuas yog Base Ncej rau lwm cov qauv)
6) Anti-Vibration Mounted System
7) Roj teeb thiab roj teeb hloov
8) Industrial Silencer thiab saj zawg zog tso hose
9) Cummins cov cuab yeej (Tsuas yog CCEC, DCEC)
Rau hom qhib, lub genset yuav yooj yim dua rau kev kho thiab kho, nrog kev ua haujlwm ruaj khov thiab ua haujlwm ntev dua, yog li tus nqi ua haujlwm siab dua.
Alternator:
Hom (xaiv tau): Wagna / Stamford / Leroy-Somer thiab lwm yam .;
Number of Phase: 3;
Kev Txuas Hom: Peb Theem thiab Plaub Kab;
Kev Tiv Thaiv Qib: IP21 IP22, IP23 tuaj yeem tsim raws li cov neeg siv khoom xav tau
Qhov siab: Tsawg dua lossis sib npaug li 1000m;
Txoj kev zoo nkauj: txhuam hniav, kev lom zem rau tus kheej, AVR tsis siv neeg hluav taws xob tswj, 100 feem pua tooj liab winding xov hlau;
Rwb thaiv tsev chav kawm: H degree.
Tswj qhov system:
Specification ntawm Control Vaj Huam Sib Luag (nrog Dej Hiav Txwv DSE7320 maub los) |
Lub vaj huam sib luag yog AMF tswj vaj huam sib luag, nrog cov zaub ntawm qhov hluav taws xob, tam sim no, zaus, dej kub, roj siab. Lub genset nrog qis roj siab, siab dej kub, tshaj ceev, tshaj load tiv thaiv muaj nuj nqi. |
DSE7320 maub los yog ib qho kev tswj hwm qib siab raws li micro-processor, Nws yog Auto Mains (Utility) Failure Control Module (DSE), tau tsim los pib thiab nres tsim cov teeb tsa uas suav nrog cov tshuab hluav taws xob thiab tsis siv hluav taws xob. suav nrog qhov muaj peev xwm ntxiv ntawm kev muaj peev xwm saib xyuas cov khoom siv hluav taws xob (kev siv hluav taws xob). Thaum lub ntsiab tsis muaj, Nws tuaj yeem pib lub cav thiab kaw lub tshuab tsim hluav taws xob tau txiav txim siab, ntsuas ntau yam kev ua haujlwm tsis raug thiab tso saib tag nrho cov txiaj ntsig thiab cov ntaub ntawv ceeb toom ntawm LCD. Nyob rau hauv tas li ntawd, nws muaj peev xwm cia li qhib breaker, thiab kaw lub cav tom qab lub ntsiab mov rov qab. |
